Static Ladle Car Weighing System

Static Ladle Car Weighing System
Static Ladle Car Weighing System
Product Code : 19
Product Description

Static Ladle Car Weighing System

Application

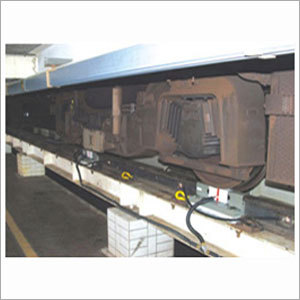

Hot Metal Rail Weigh is a static weighing system designed for the weighing of hot ladle cars. Precision QS-G load cells made in the form of the rail determine the weight of the ladle car. This is done by positioning the precision load cells beneath each of the wheels of the ladle car. The load cells and teflon cables are designed to withstand temperatures of over 250°C. The weight values are acquired and processed with the use of weighing electronics and customized PC systems.

Benefits

  • Static weighing of hot ladle cars.
  • Pitless and gap free design.
  • Simple installation -no frame needed.
  • Suitable for very harsh environments
  • Precise determination of hot metal output.

Technical Specifications

Operating Temp.range of weighing controller

10°C to + 50°C

Operating Temp. range of load cell

10°C to + 200°C.

Rail profile. track width & tie spacing

as used in existing tracksection

System Capacities (t)

10 to 300

System Accuracy

±0.4% F.S.

Applicable Rail Weights

11 to 60 kg./m

Overload Capacity

150%

Applicable System

for 4 wheel /8 wheel ladle car

Power supply for weighing controller

AC 220 V±10%

Power consumption for weighing controller

= 100 VA

Display resolution of weighing controller

1000 – 3000d

Options

  • Wireless large display model GA 100.
  • Customized PC software for system
  • Wireless data transfer to control room with integration with plant level software
