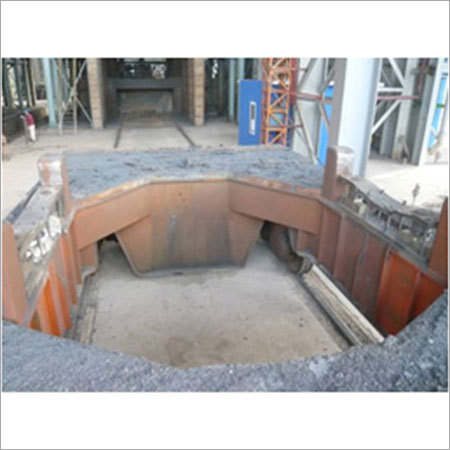

Ladle Transfer Car Weighing System

Ladle Transfer Car Weighing System
Ladle Transfer Car Weighing System
Product Code : OO3
Brand Name : AMSTEL
Product Description

Static Ladle Car Weighing System

Application

Hot Metal Rail Weigh is a static weighing system designed for the weighing of hot ladle cars. Precision QS-G load cells made in the form of the rail determine the weight of the ladle car. This is done by positioning the precision load cells beneath each of the wheels of the ladle car. The load cells and Teflon cables are designed to withstand temperatures of over 250°C. The weight values are acquired and processed with the use of weighing electronics and customized PC systems.

Benefits

Static weighing of hot ladle cars.

Pitless and gap free design. Simple installation no frame needed.
Suitable for very harsh environments

Precise determination of hot metal output.

Operating Temp.range of weighing controller

:  10oC to + 50C

Operating Temp. range of load cell

:  10oC to + 200oC.

Rail profile. track width & tie spacing

:  as used in existing   track section

System Capacities (t)

:  10 to 300

System Accuracy

+0.4% F.S.

Applicable Rail Weights

:  11 to 60 kg./m

Overload Capacity

:  150%

Applicable System

:  for 4 wheel /8 wheel ladle     car

Power supply for weighing controller

:  AC 220 V, +10%

Power consumption for weighing controller

:  = 100 VA

Display resolution of weighing controller

:  1000, 3000d
